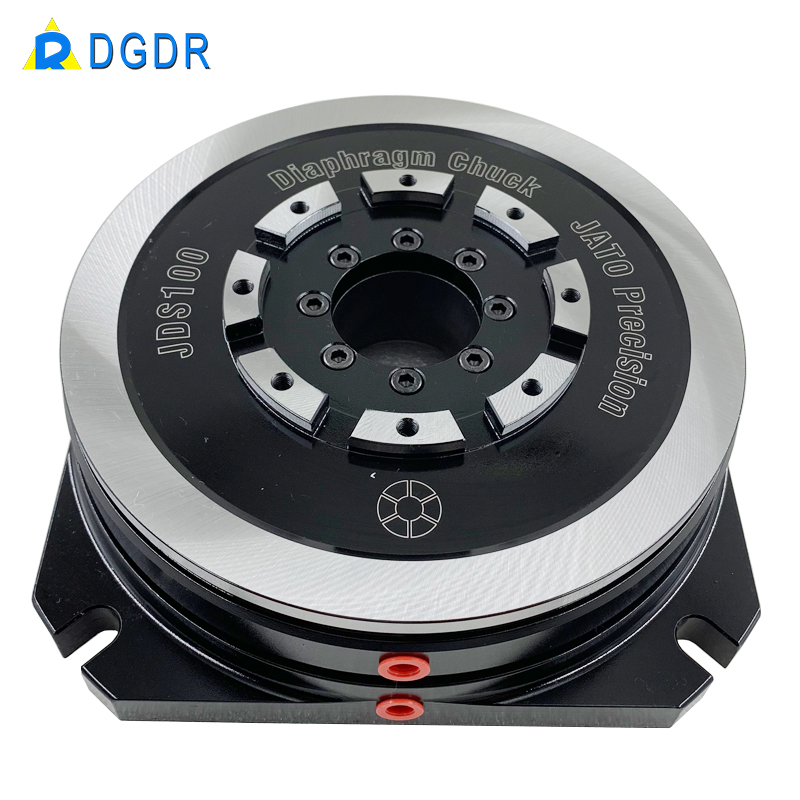

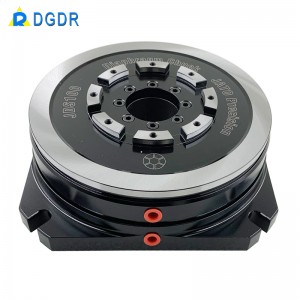

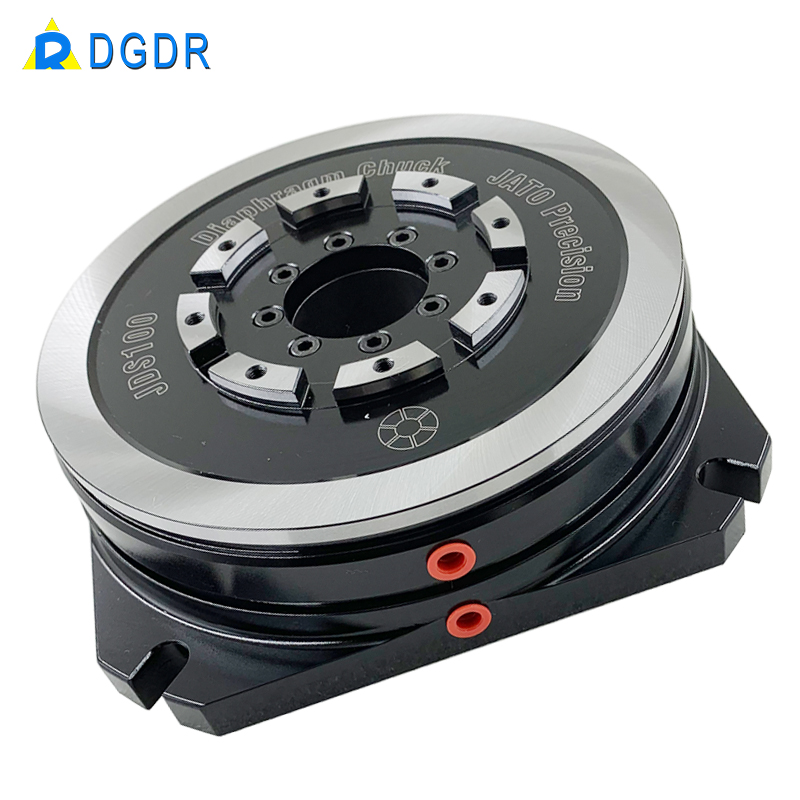

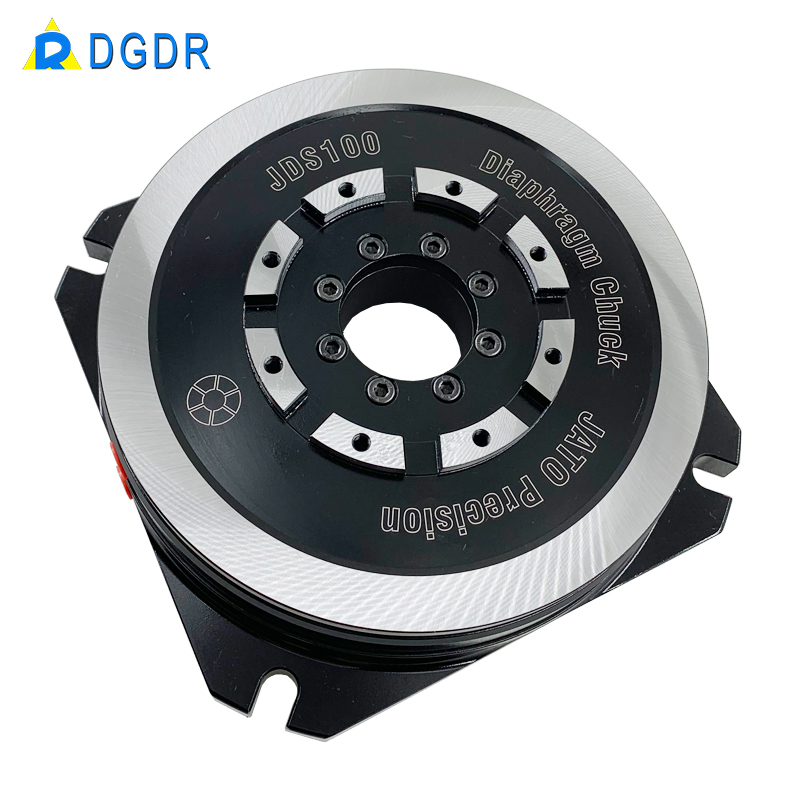

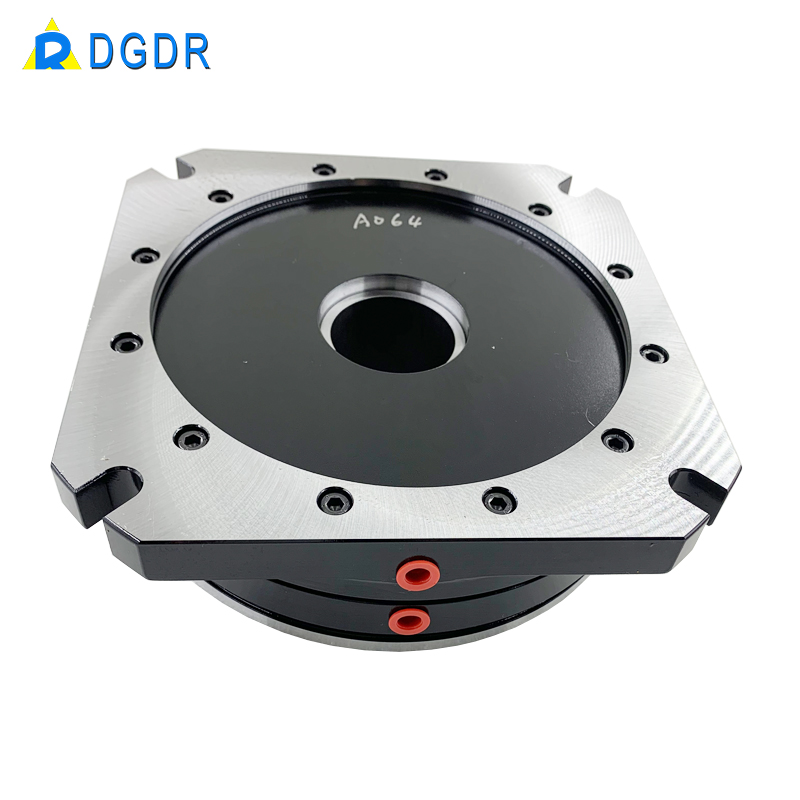

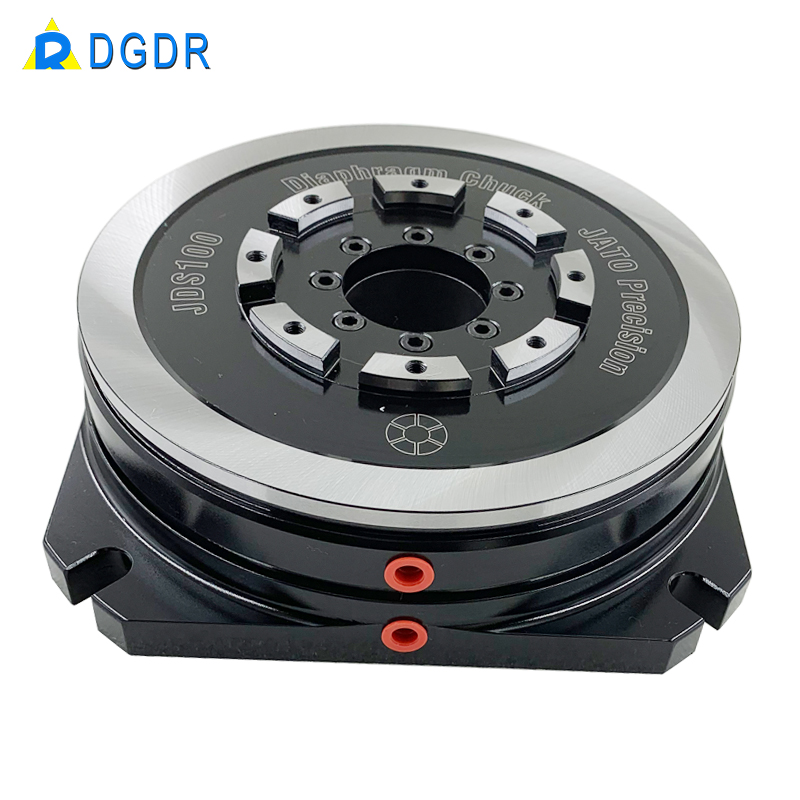

Taiwan king JDS vertical diaphragm type pneumatic chuck fixed can not rotate the chuck – oil pressure chuck

Introduction

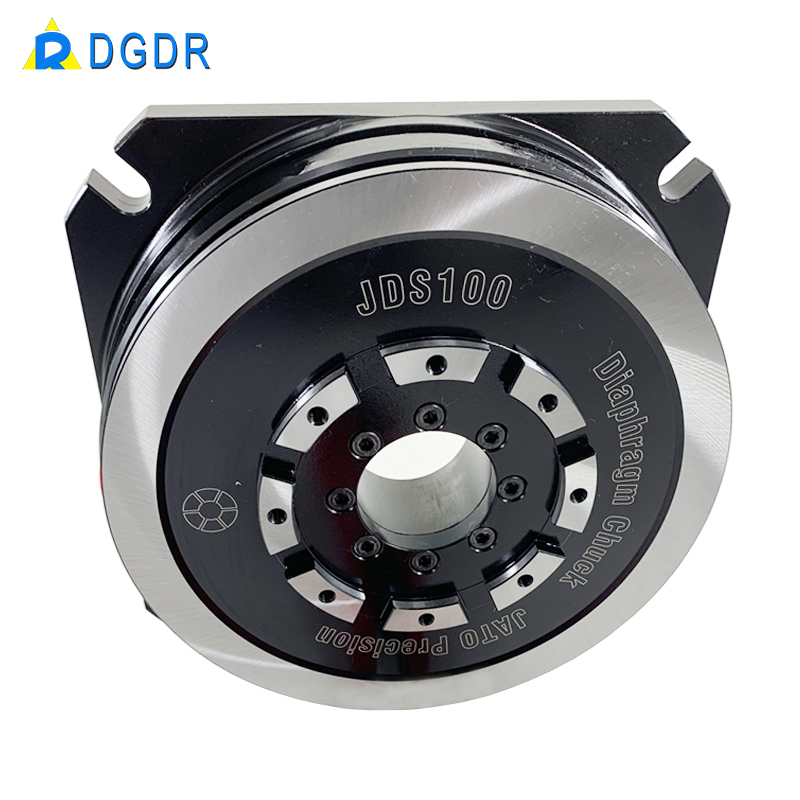

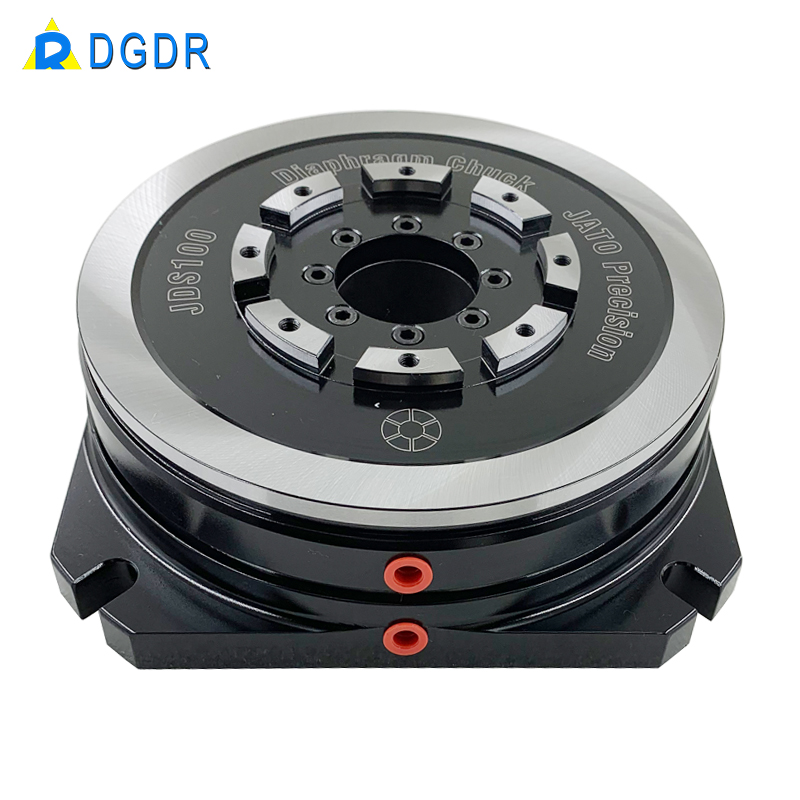

JDS stationary diaphragm chuck is designed for automatic equipment, such as milling machine, high precision, simple construction, easy to install, improving the efficiency of volume production and saving cost.

It is using for all kinds of CNC process center. For thin or small workpiece.

1.Steel body

2.Max through-hole up to 42mm

3.Gripping force can be adjusted according to the enter pressure

4.High precision, long life, high rigidity, low chassis

5.One chuck double use, use for inner expanding and outer clamping

6.No need to revise the accuracy when change the vice jaws

7.Using for small work-piece

8.Highly dustproof and waterproof.

offer us more information about the chuck you need, our engineer can recommend a suitable chuck to you.

1.for what kind machine use, in other words, let us know the processing style

2.the size of your work-piece?

3.do you need rotary chuck of fixed?

4.if you need rotary chuck, how about the rotary speed?

5.do you have special request of the accuracy?
