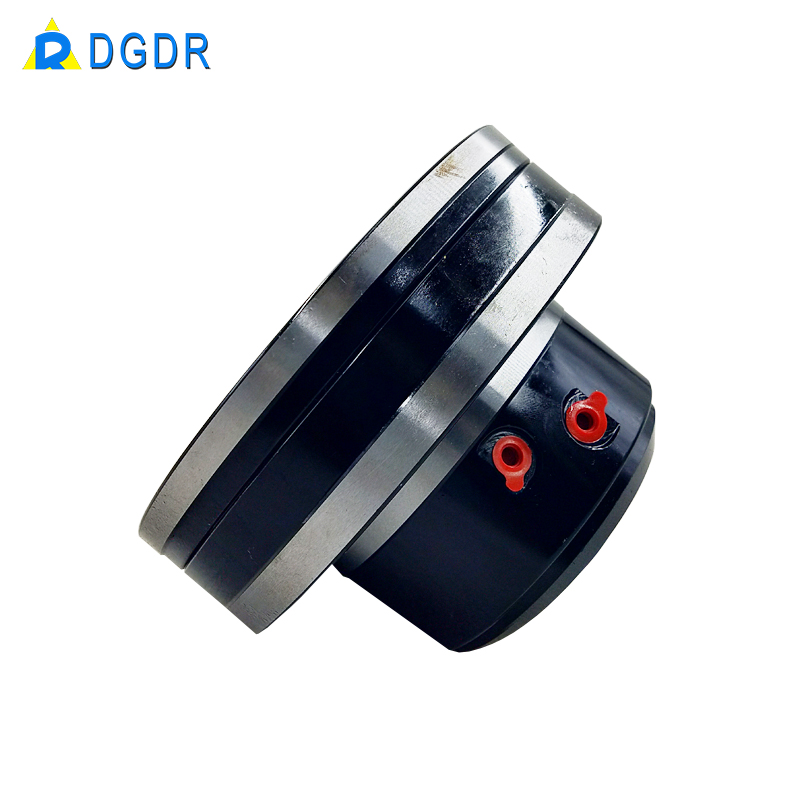

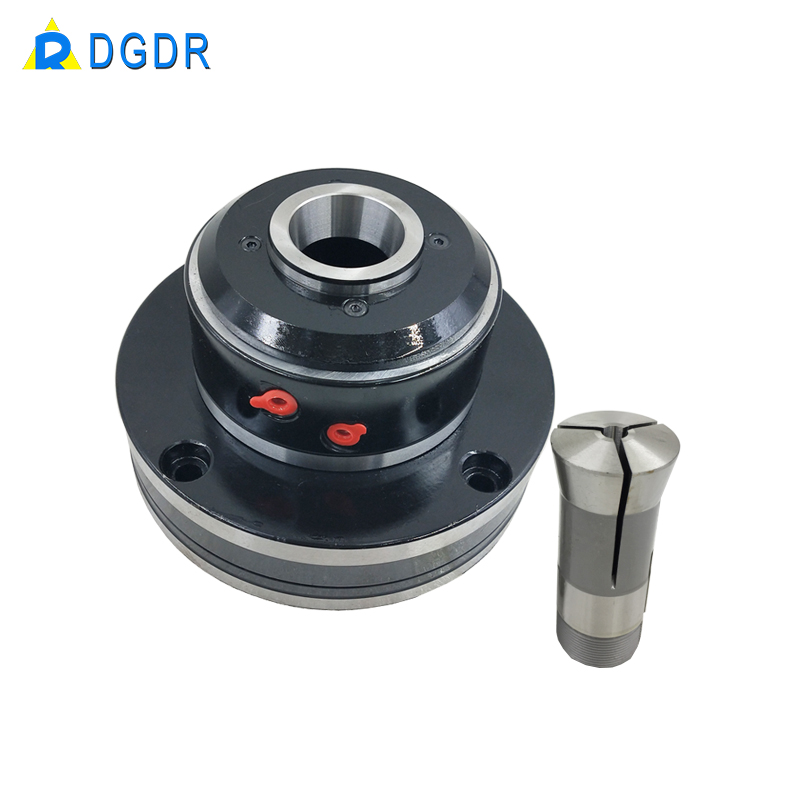

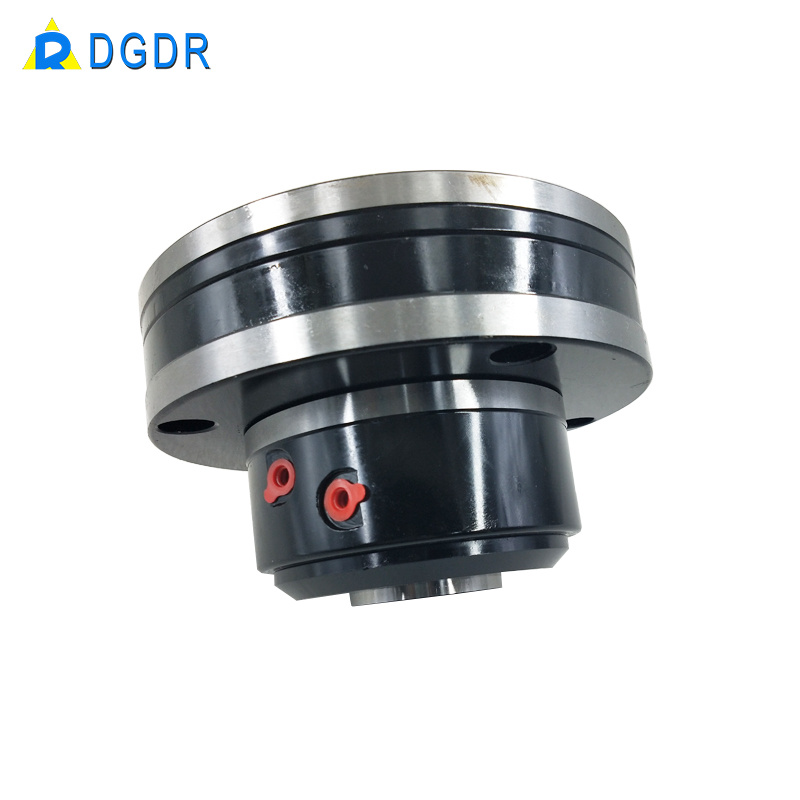

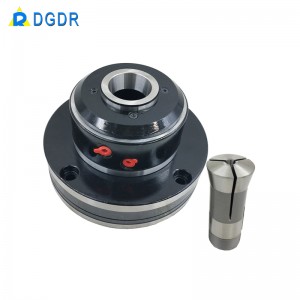

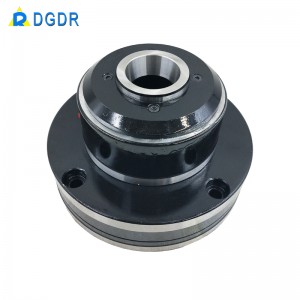

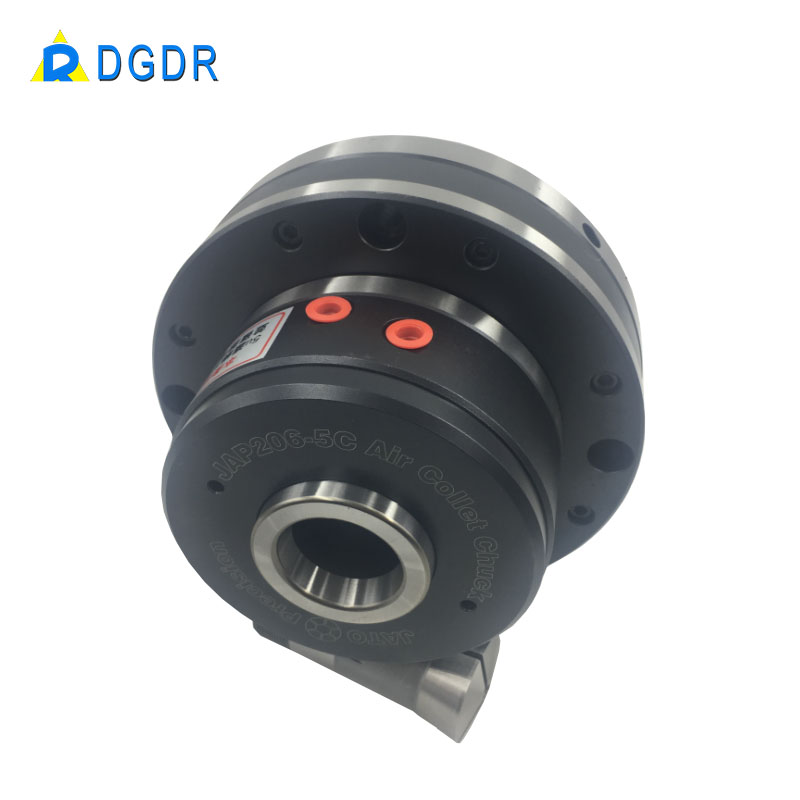

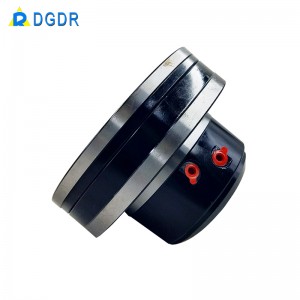

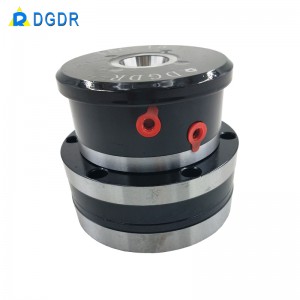

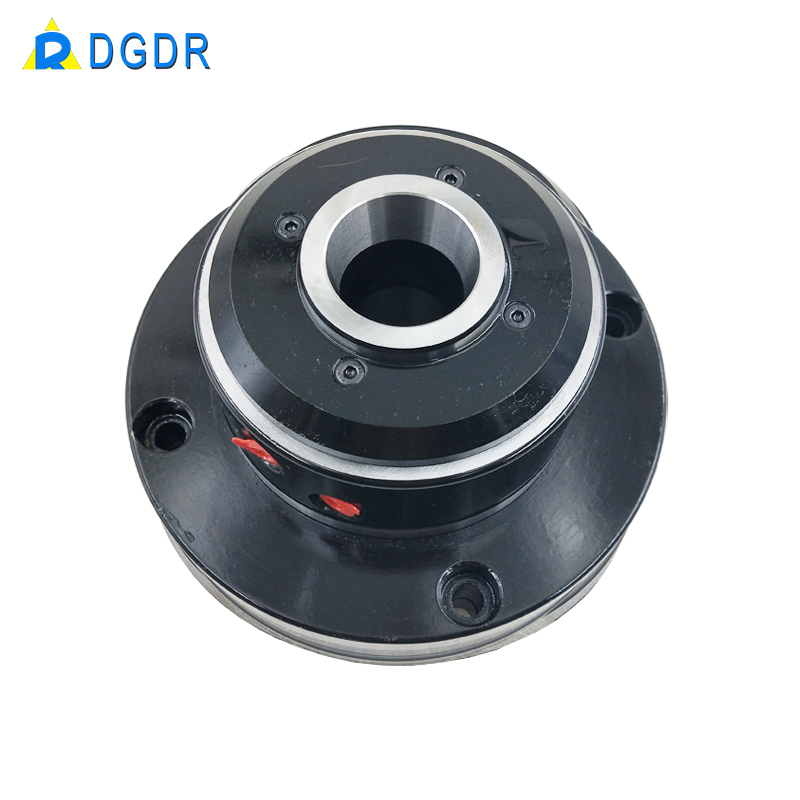

MIni pneumatic chuck JAC-25 milling machine using rotary chuck for CNC lathe and laser equipment chuck

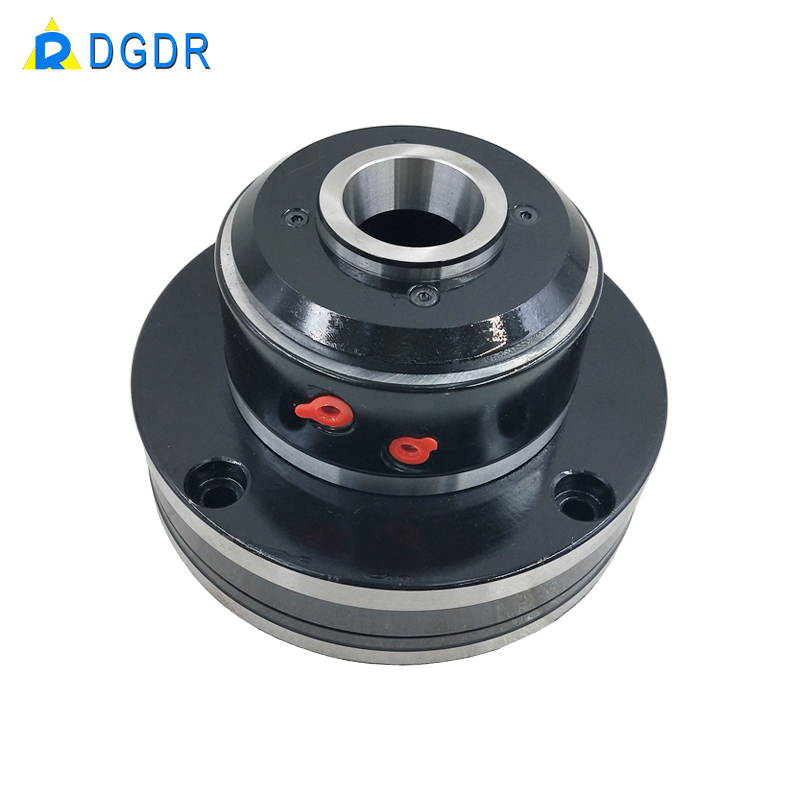

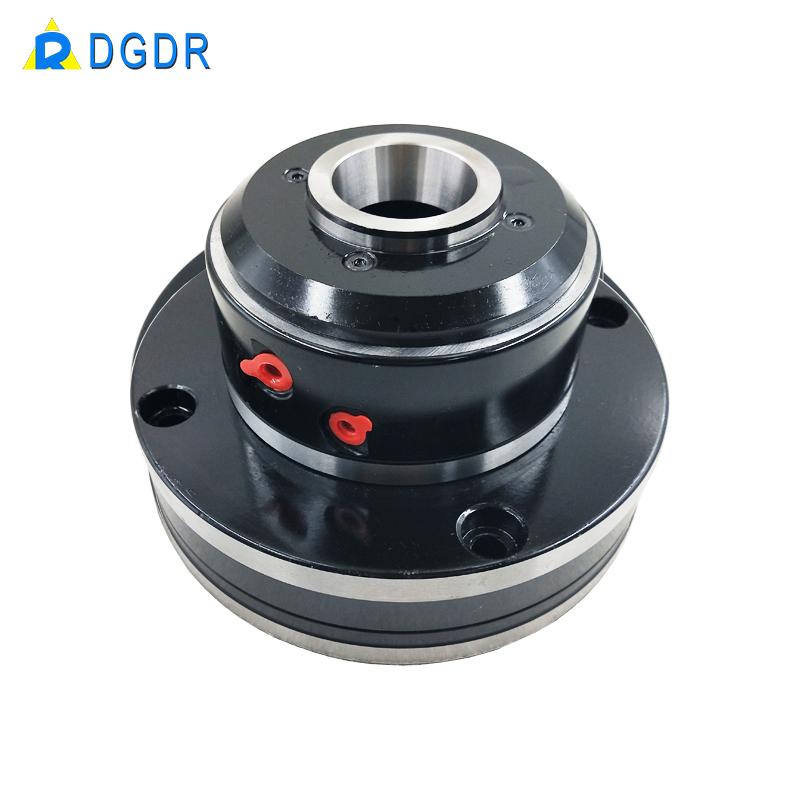

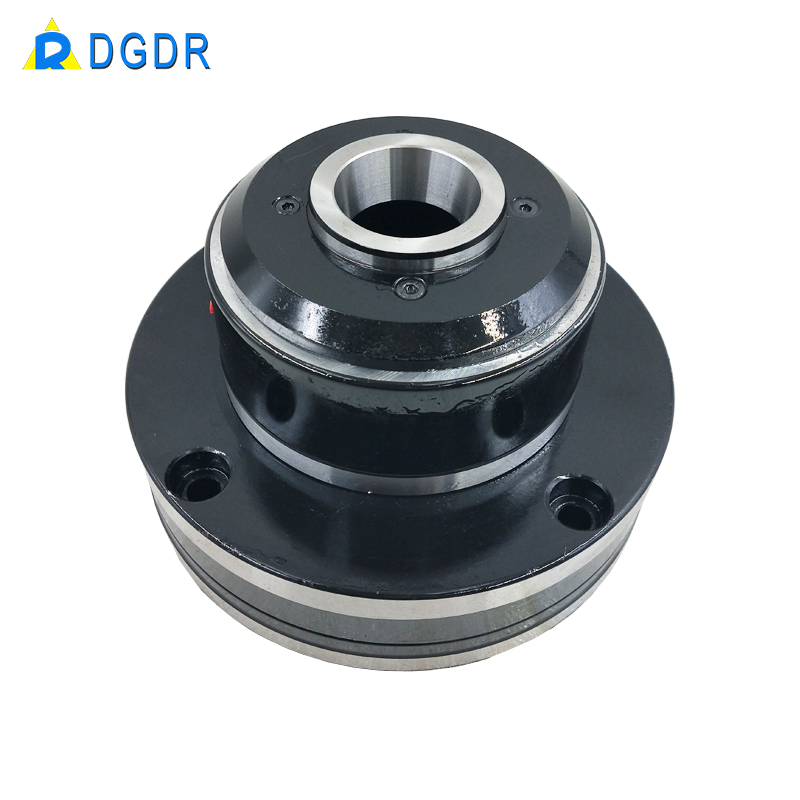

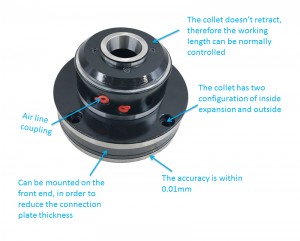

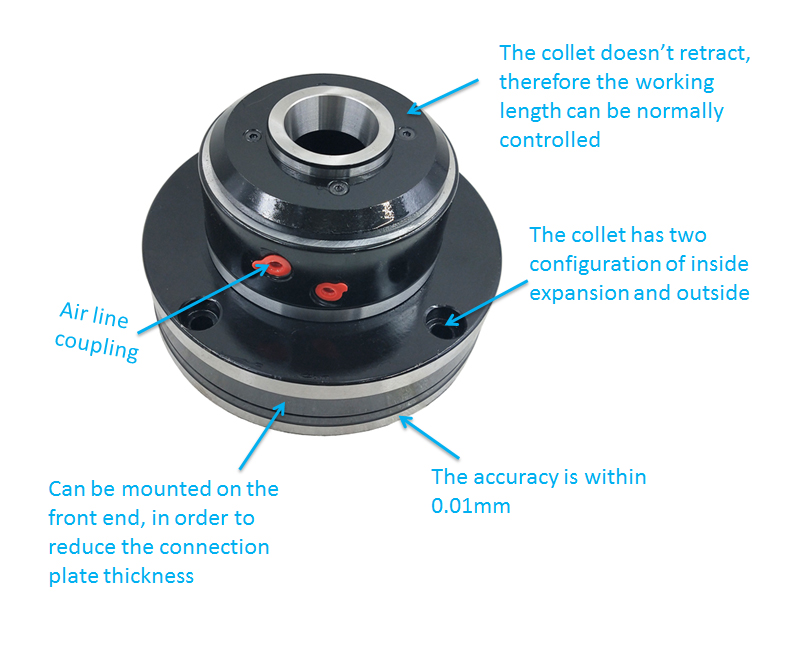

JAC SERIES cylinder-integrated Air Collet  Chuck provides you with irreplaceable convenience to set up your power collet chuck system. JAC Collet Chuck integrates itself a high speed rotary cylinder, saving you from installing an extra cylinder, a drawtube or an air feeder. With its real front-mounting design, the installation for a  power collet chuck system is revolutionarily easier than ever.

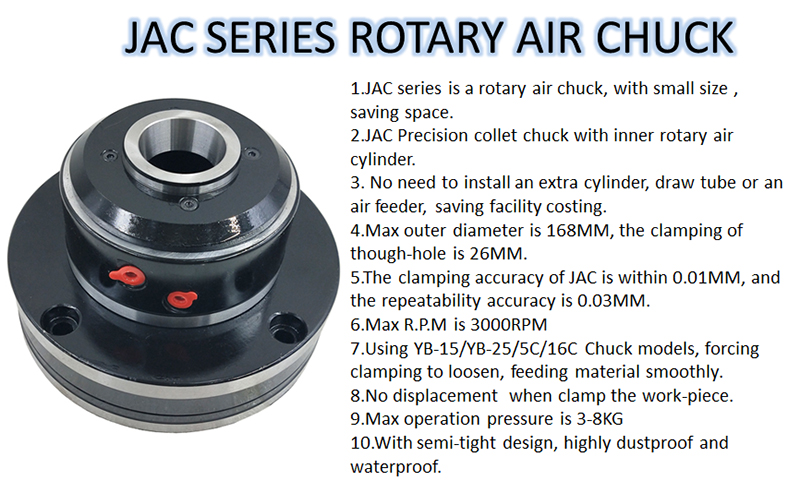

1.JAC series is a rotary air chuck, with small size , saving space.

2.JAC Precision collet chuck with inner rotary air cylinder.

3. No need to install an extra cylinder, draw tube or an air feeder, saving facility costing.

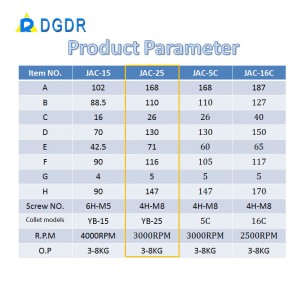

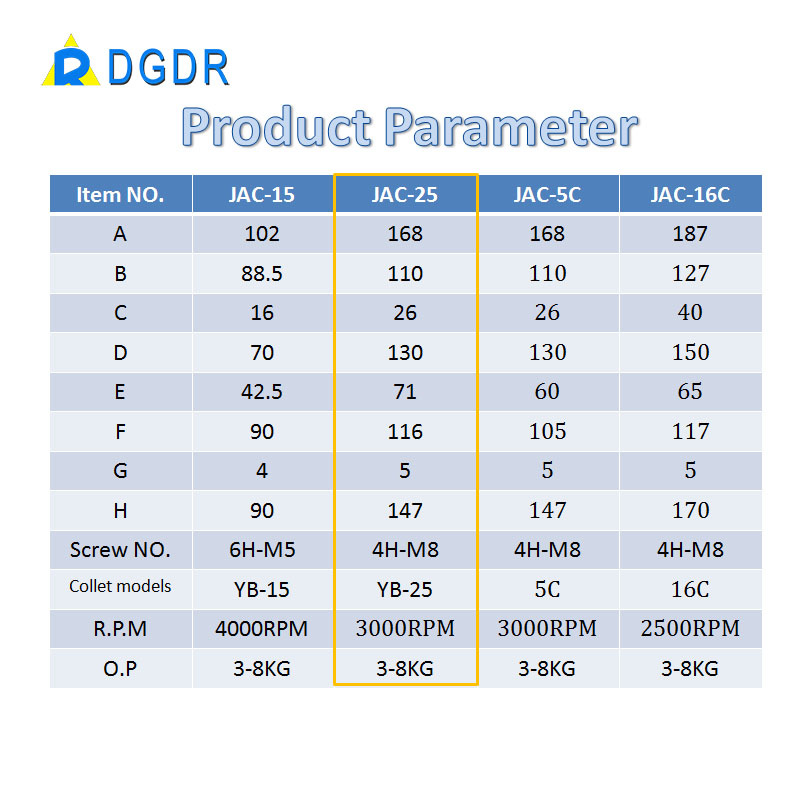

4.Max outer diameter is 168MM, the clamping of though-hole is 26MM.

5.The clamping accuracy of JAC is within 0.01MM, and the repeatability accuracy is 0.03MM.

6.Max R.P.M is 3000RPM

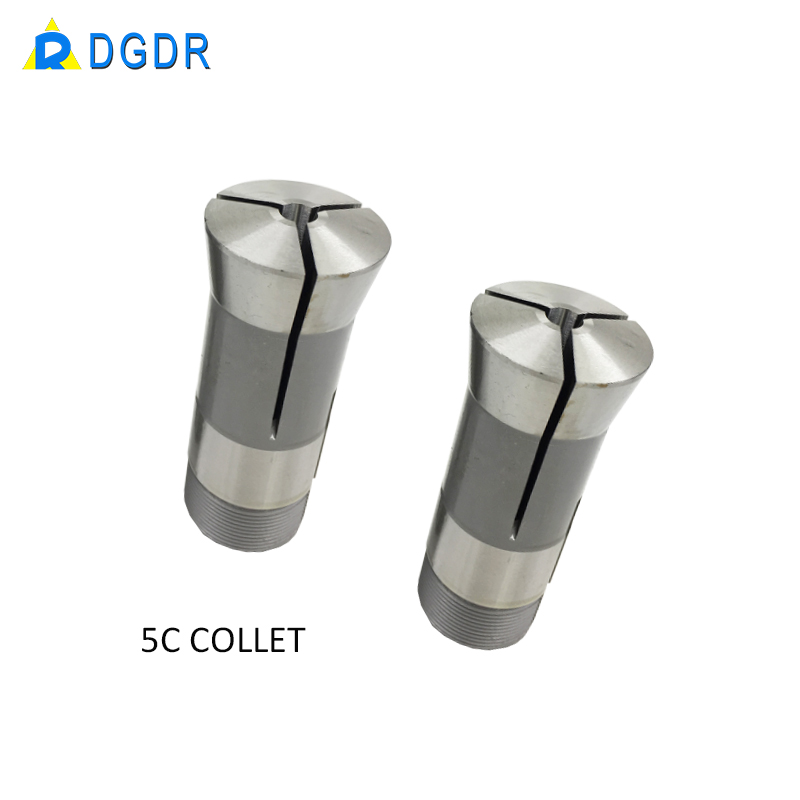

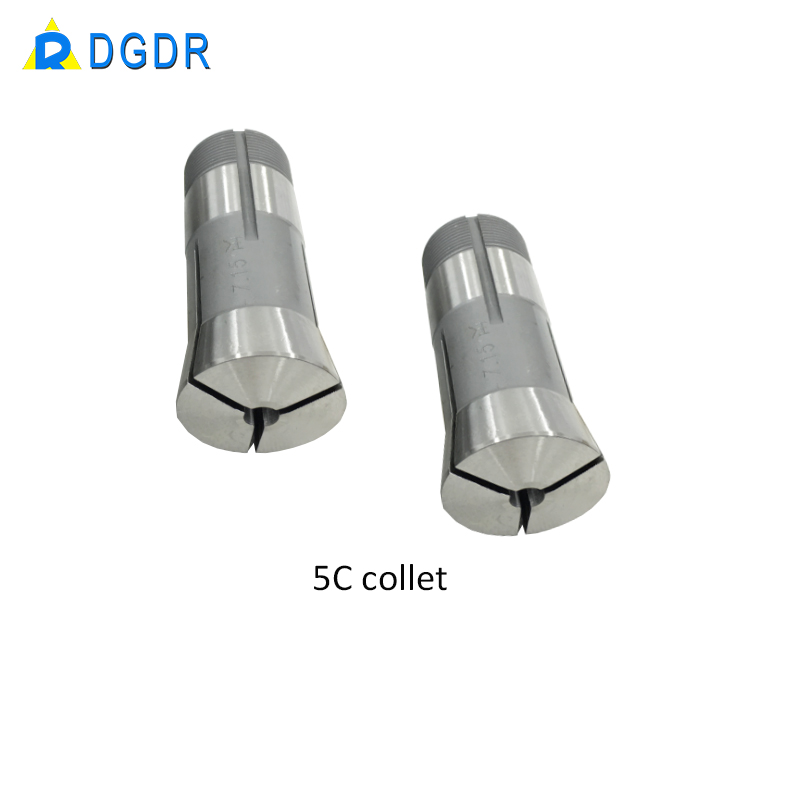

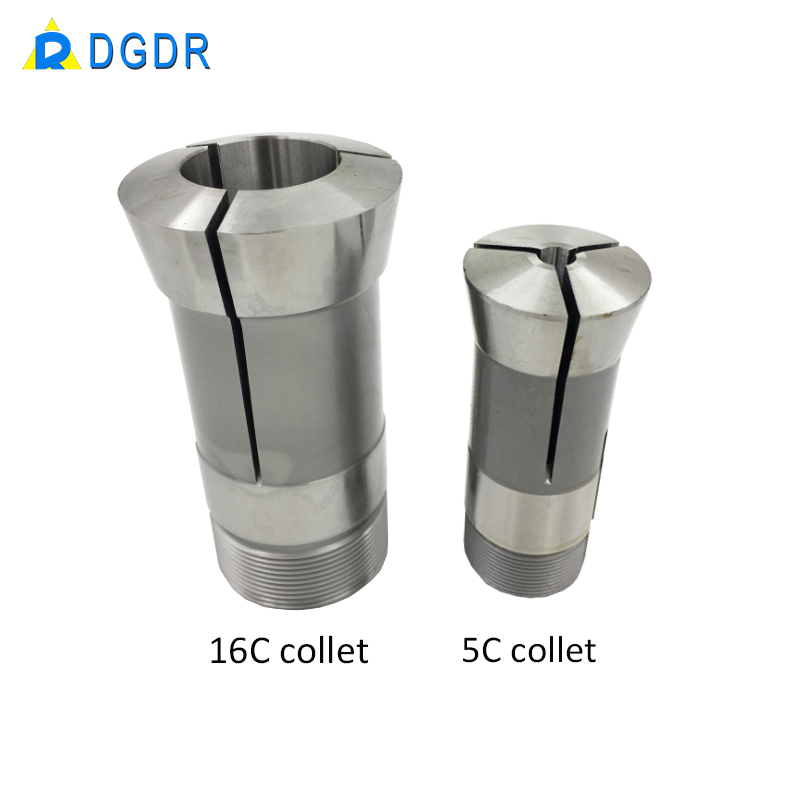

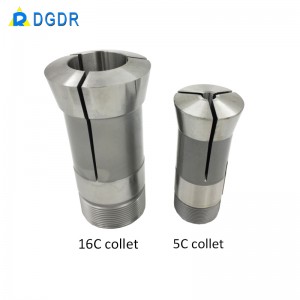

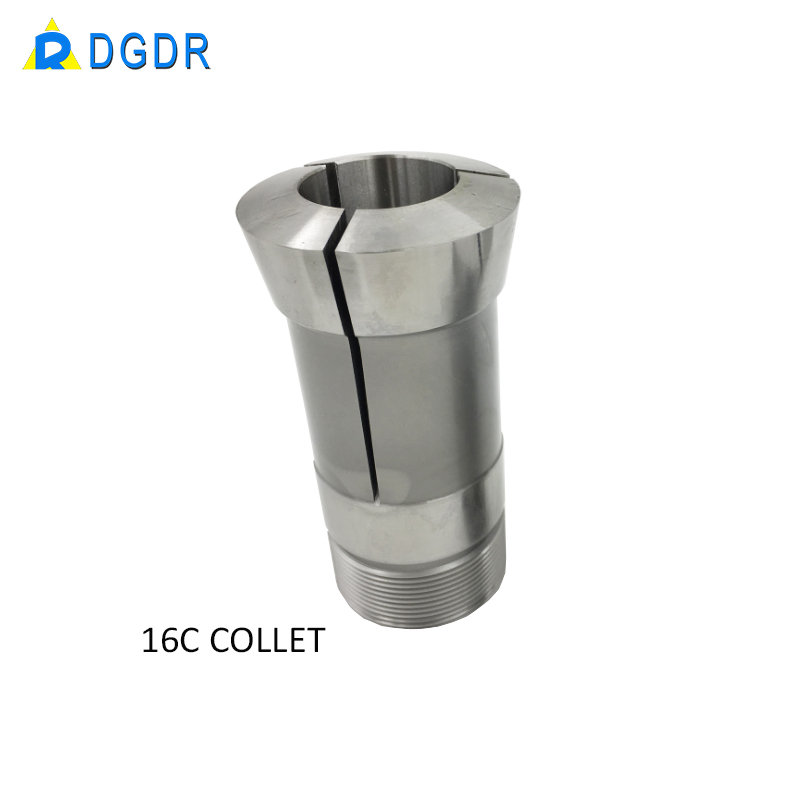

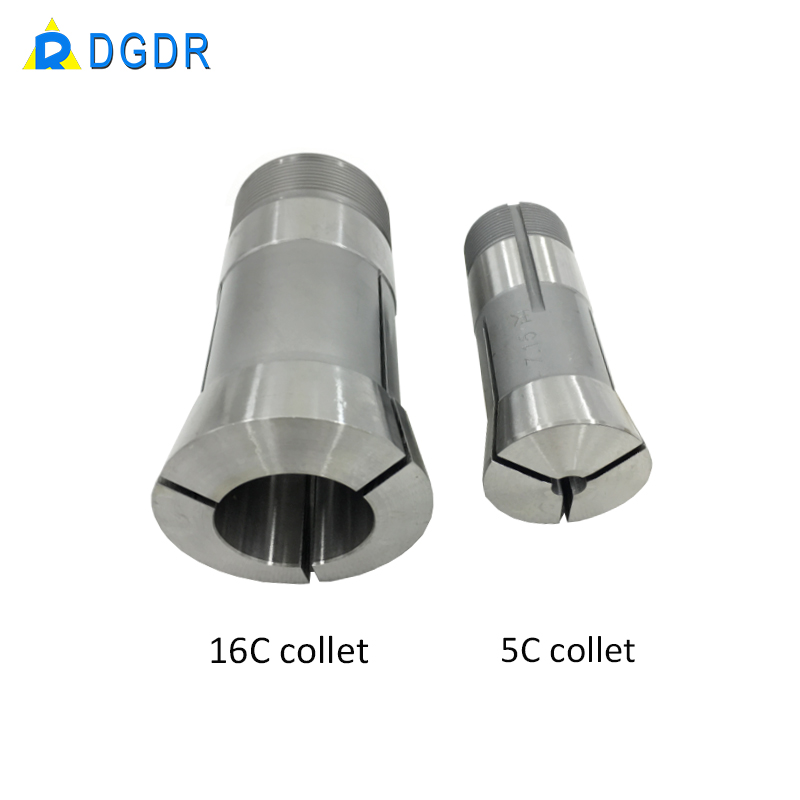

7.Using YB-15/YB-25/5C/16C Chuck models, forcing clamping to loosen, feeding material smoothly.

8.No displacement  when clamp the work-piece.

9.Max operation pressure is 3-8KG

10.With semi-tight design, highly dustproof and waterproof.

MIni pneumatic chuck JAC-25 milling machine using rotary chuck for CNC lathe and laser equipment chuck
