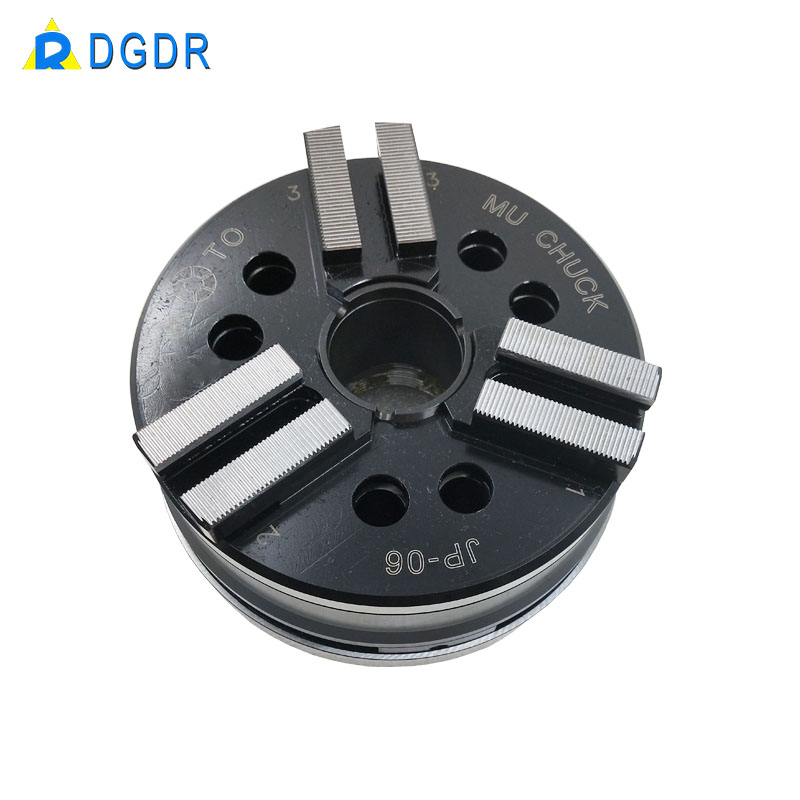

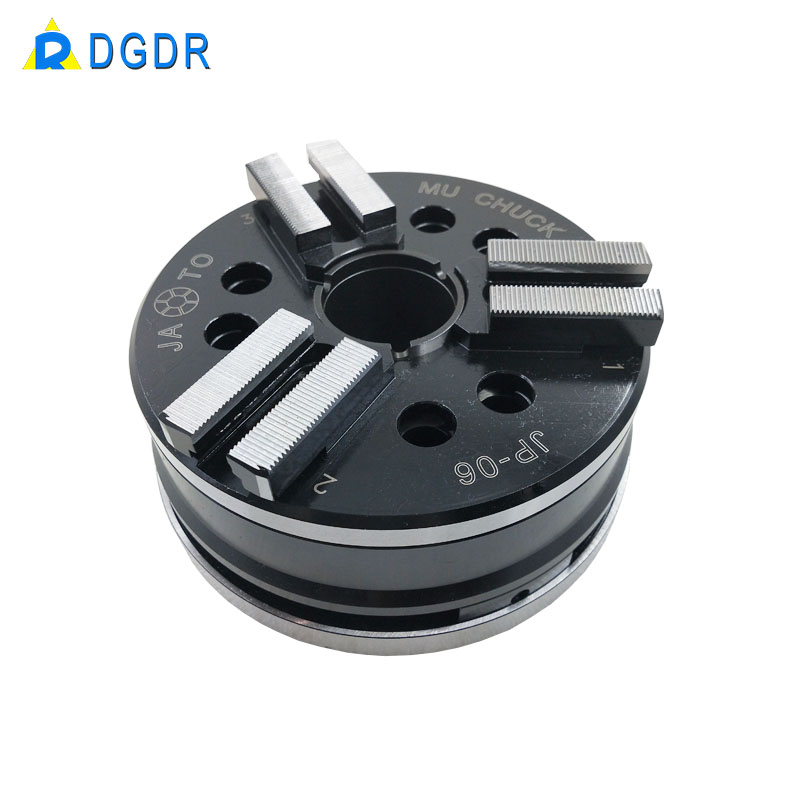

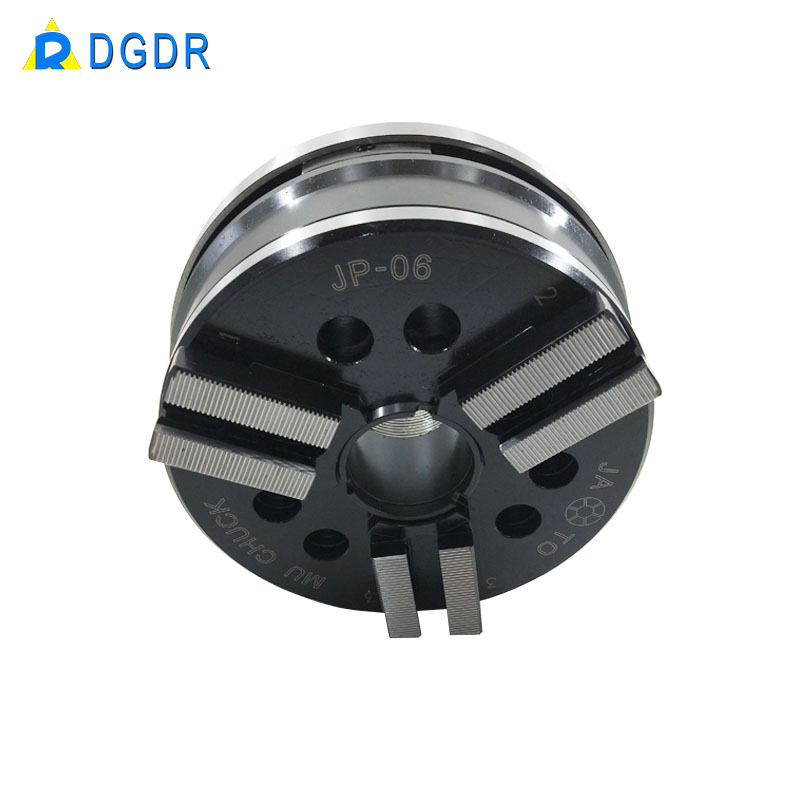

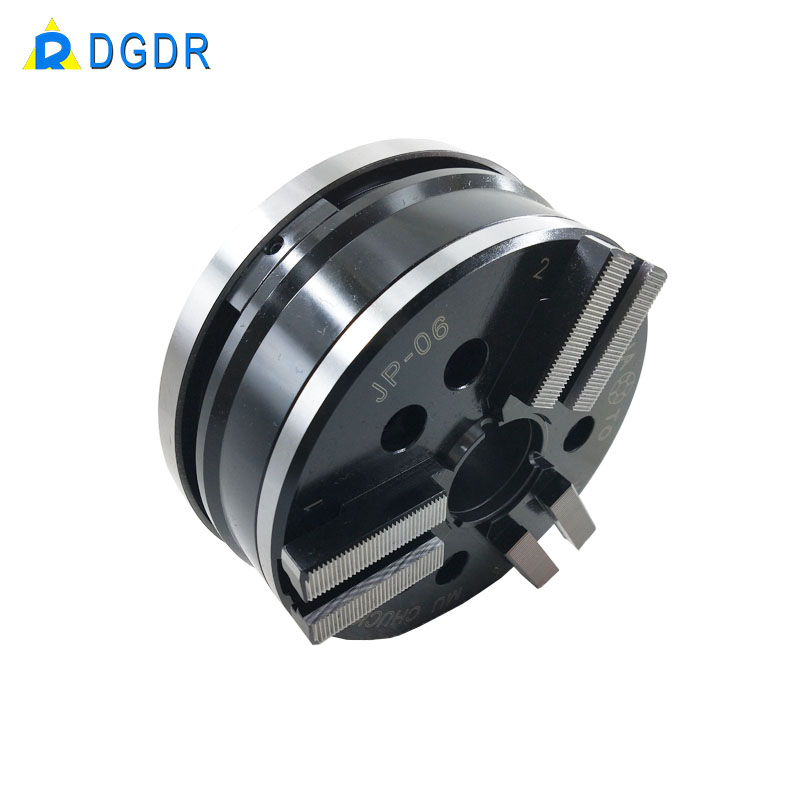

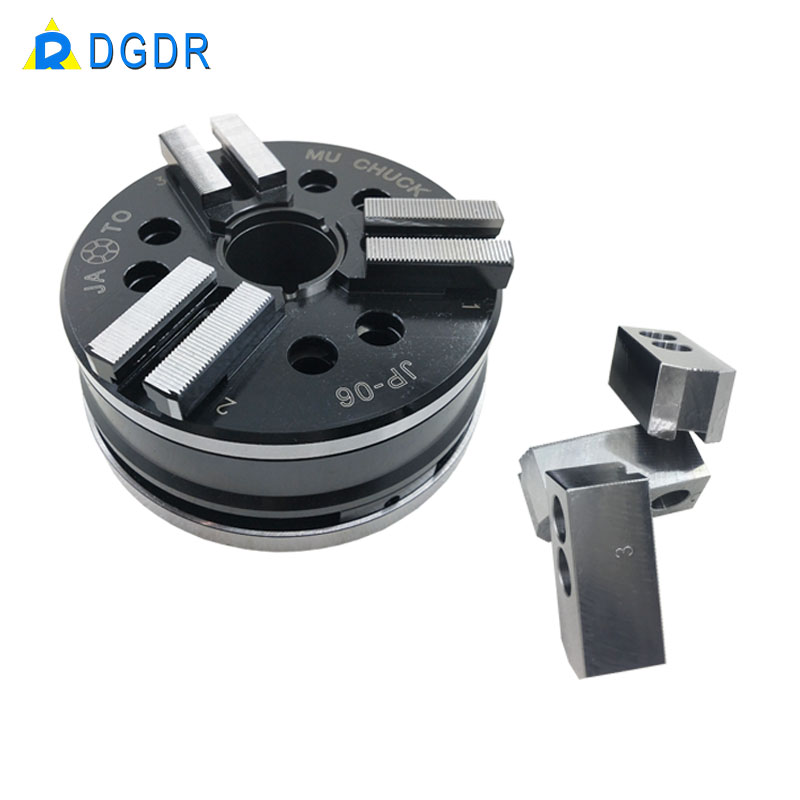

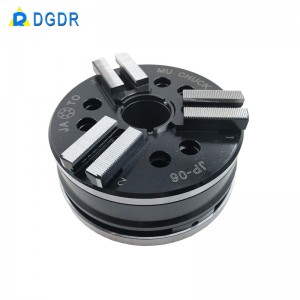

JP-06 series high speed diaphragm chuck, digital controlled lathe chuck, precision grinder chuck

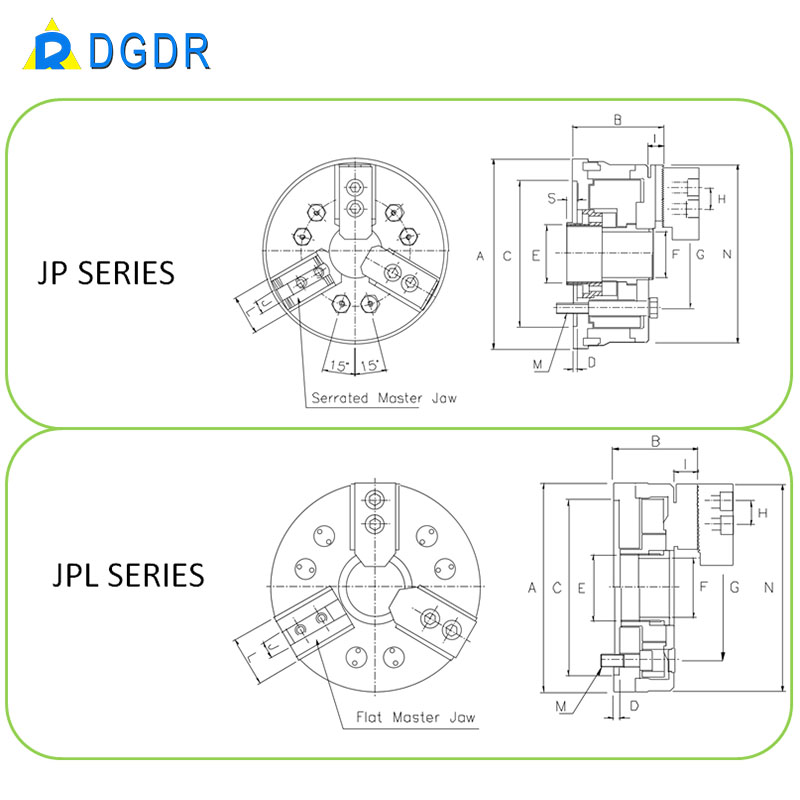

Introduction of JP Series

JP/JPL series diaphragm chuck performs its clamping movement by material deformation which features high repeatability low maintenance requirements. Compared to regular wedge-hook power chucks. JP/JPL diaphragm chuck owns high repeatability accuracy of 0.005mm, and longer product life since JP/JPL has no clearance, no sliding parts to wear out. JP is designed for high speed turning machines. It incorporates balance-weights to eliminate centrifugal force. JPL is specially designed for precision grinders. The chuck is with low profile and mass which enable your machines to have high performance and high chucking accuracy.

1.0.005mm repeatability accuracy

2.Anti centrifugal force design.

3.Clamping force remains high in high R.P.M

4.Integrated dynamic-balancing-weights for fine balance adjustment

5.No sliding parts to wear out

6.Clamping force/stroke is proportional to actuating force.

7.Ideal for fragile parts, or thin-wall parts clamping.
