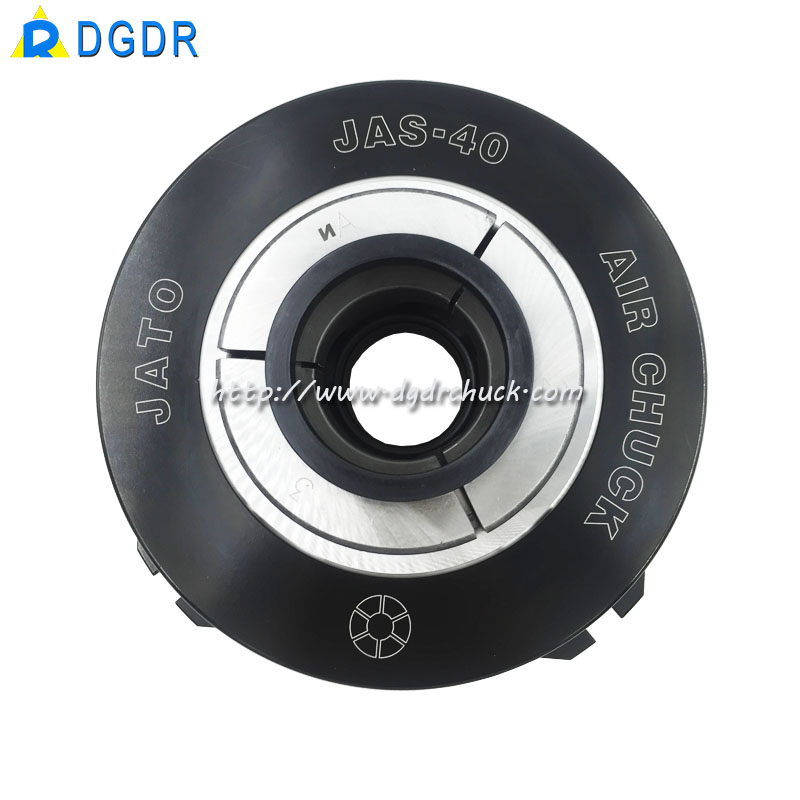

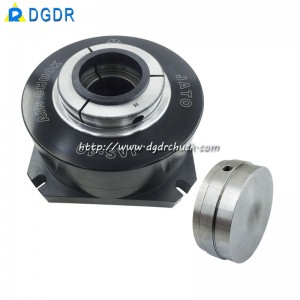

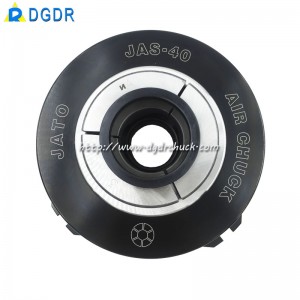

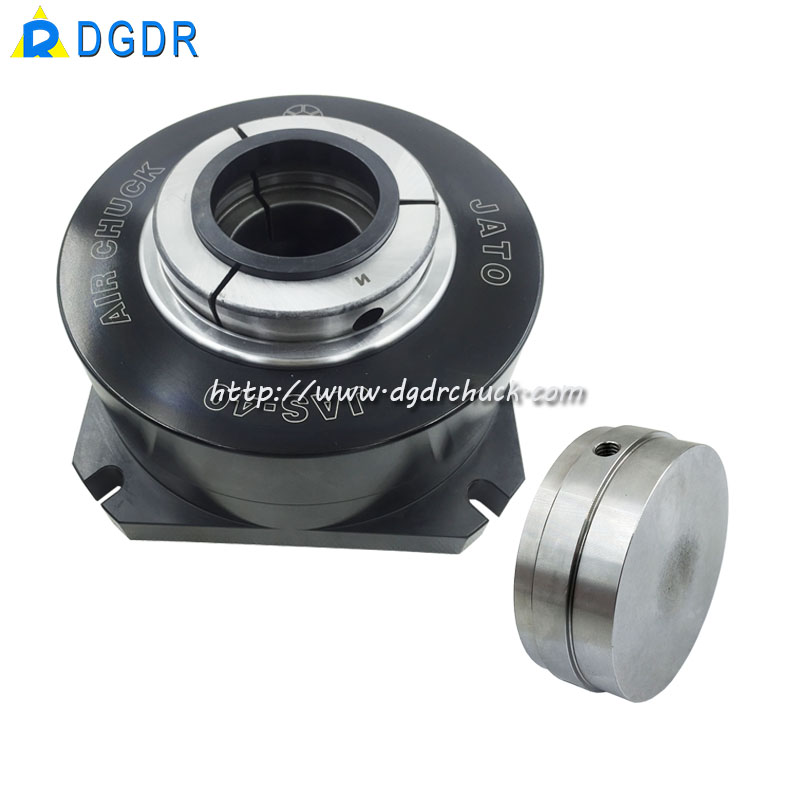

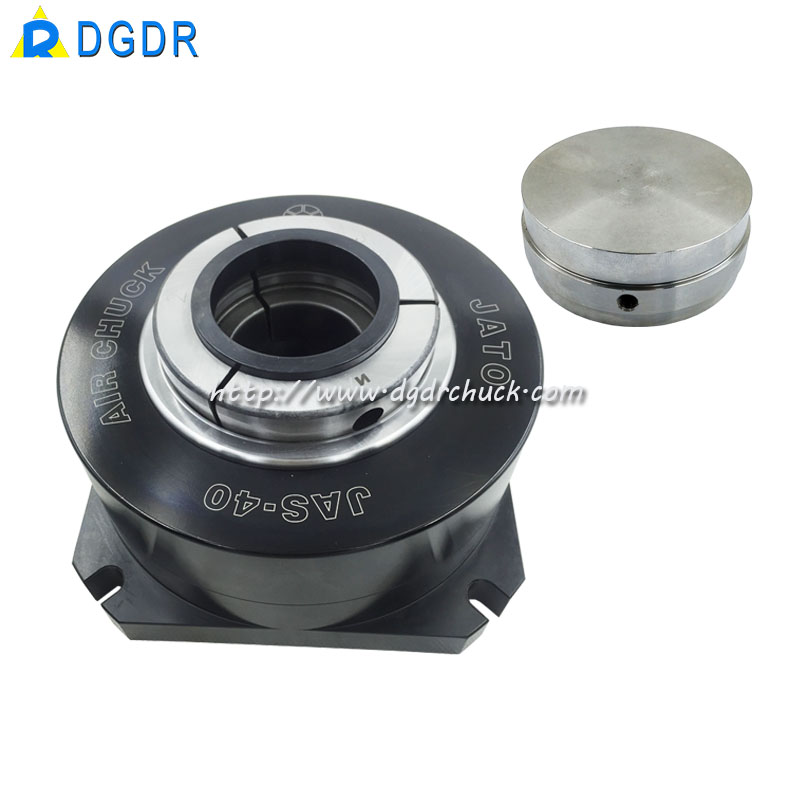

JAS-40 hot sale high precision stationary pneumatic chuck for milling machine tapping machine chuck

Short Description:

JAS-40 hot sale high precision stationary pneumatic chcuk for milling machine tapping machine chuck pneumatic stationary chuck is a high precision chuck with small size and light weight, can put several chucks on same workbench, to improve the working efficiency, decrease the maintenance cost and labour cost. With high stability, high precision, waterproof and dustproof, it is usually applying to CNC, such as tapping machine. 1.Cost effective stationary collet chuck 2.Dead length design: no...

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 1 Piece

Supply Ability: 1200 Piece/Pieces per Month

Product Name: JAS-40 stationary chuck

Type: pneumatic chuck

Material: steel

repeatability accuracy: within 0.015MM

match collet: C-40

Operation pressure: 3-20KG/cm2

Gripping force: 5250kgf

packing size: 26*26*23cm

G.W: 11kgs

usage: milling cutter machine,tapping machine, Automation equipment

Inquiry now Download Catalogue

Product Detail

Product Tags

JAS-40 hot sale high precision stationary pneumatic chcuk for milling machine tapping machine chuck

pneumatic stationary chuck is a high precision chuck with small size and light weight, can put several chucks on same workbench, to improve the working efficiency, decrease the maintenance cost and labour cost. With high stability, high precision, waterproof and dustproof, it is usually applying to CNC, such as tapping machine.

1.Cost effective stationary collet chuck

2.Dead length design: no axial movement.

3.High accuracy. High rigidity. Long product lift.

4.High resistant to cutting chips, fluid or dust.

5.Chuck force-opening design ensures no work-part jamming
