Short Description:

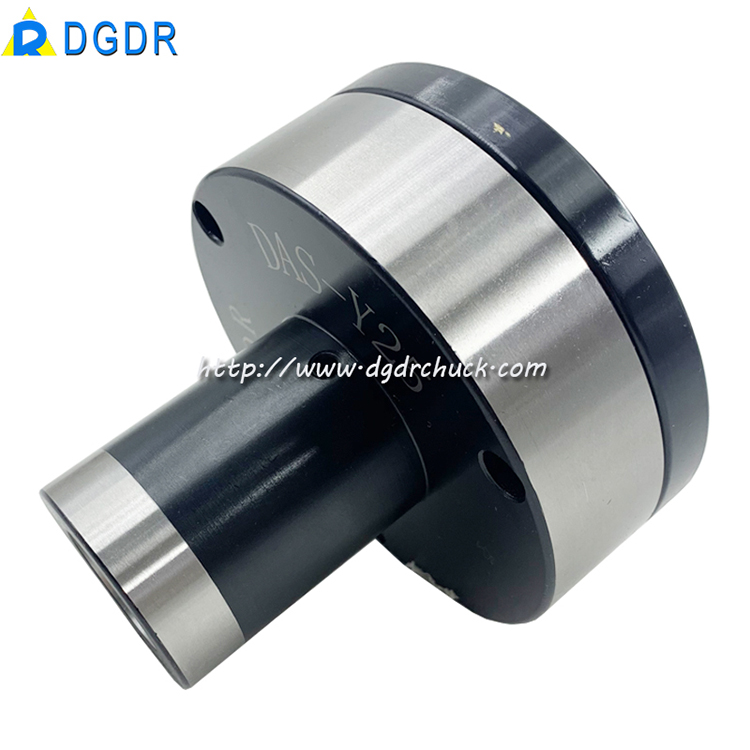

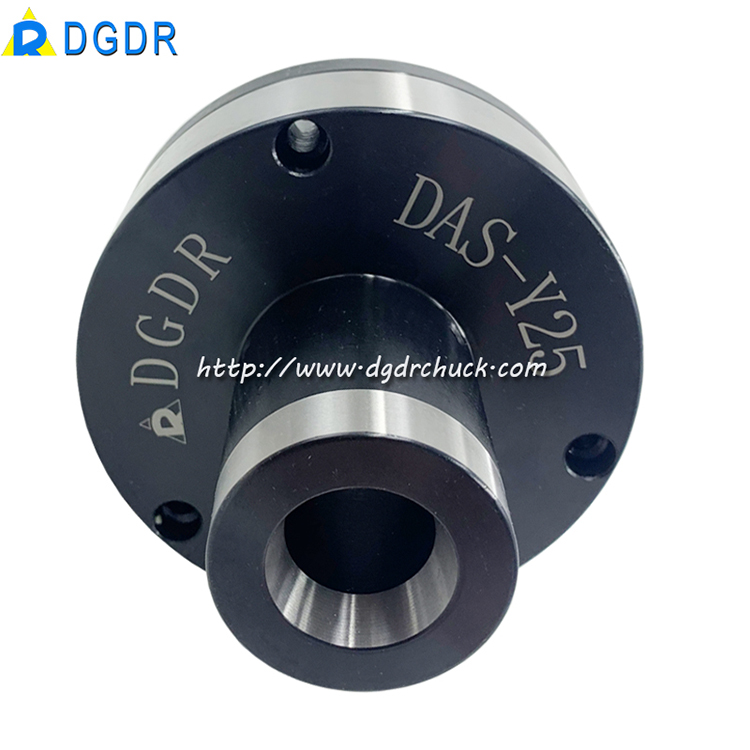

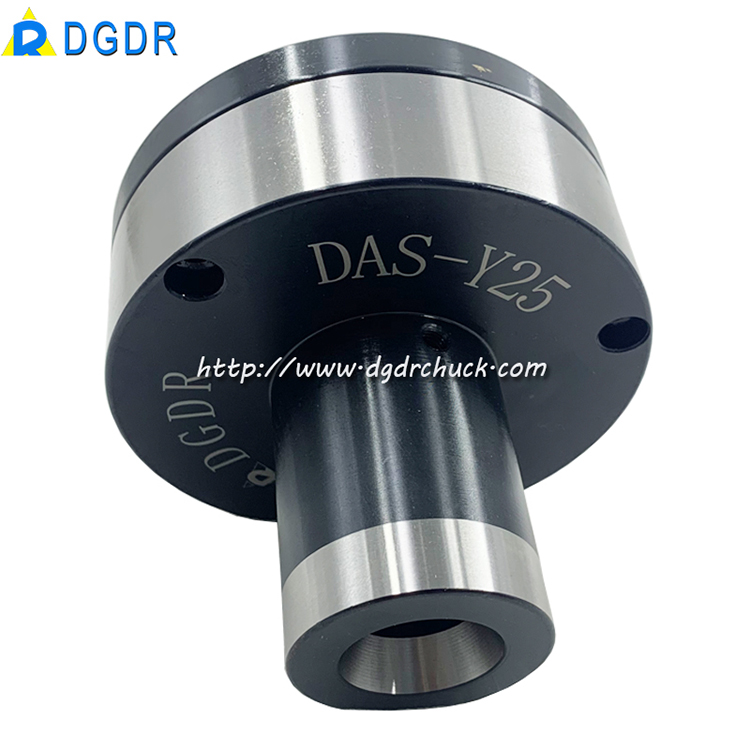

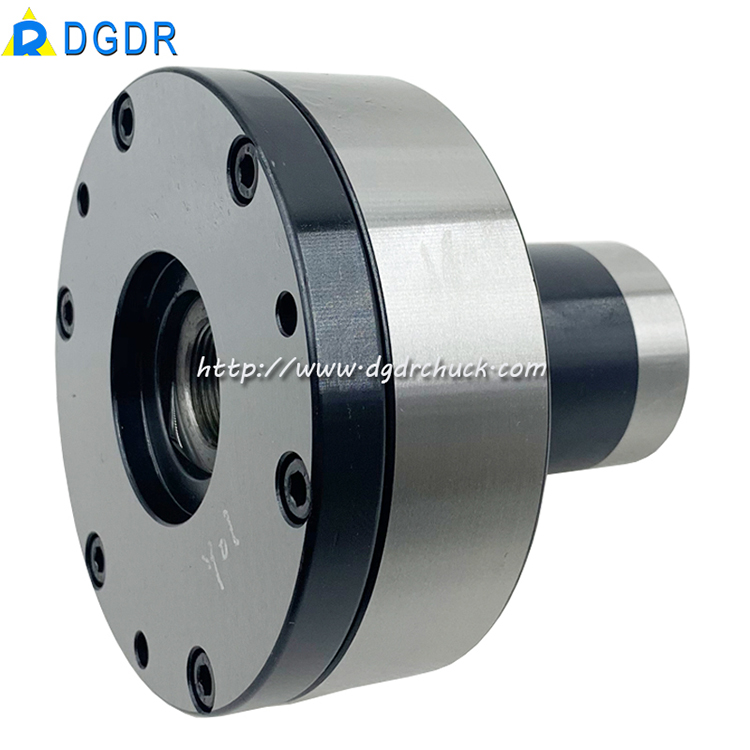

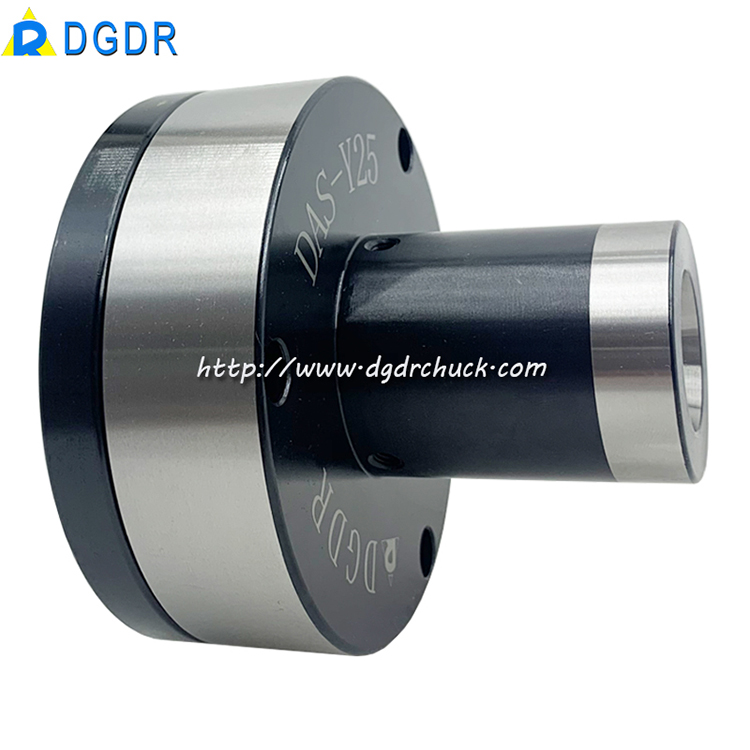

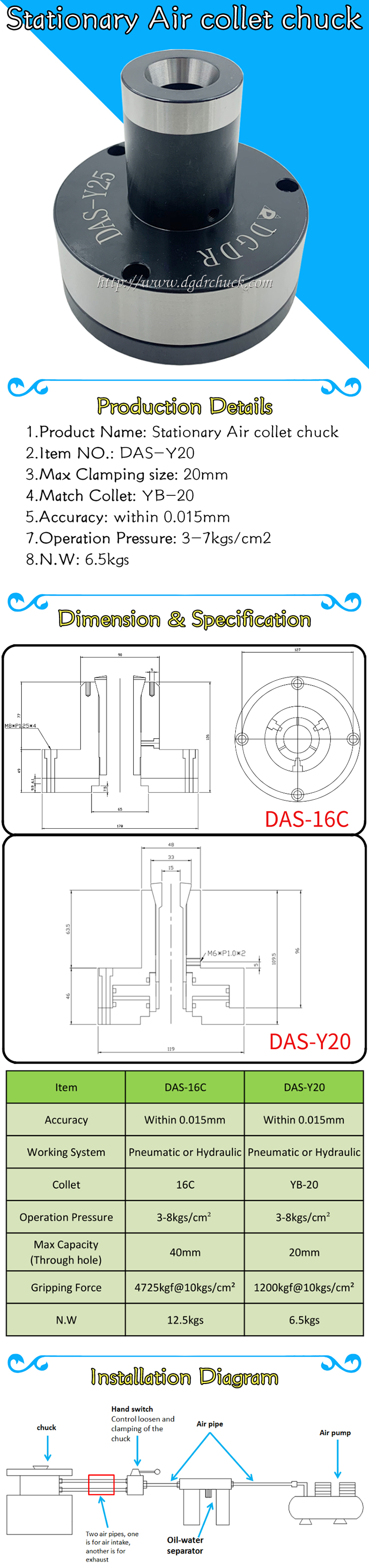

High precision stationary chuck DAS-Y20 back-pulled air collet chuck for tapping machine drilling machine automatic equipmentfixed pneumatic chuck

Product Name: back-pulled Stationary air collet chuck

Item NO: DAS-Y20

Type: pneumatic chuck

Material: steel

MAX clamping size: 20mm

repeatability accuracy: within 0.015MM

match collet: YB-20

Operation pressure: 3-15KG/cm2

gripping force: 1200kgf

packing size: 20*20*15cm

G.W: 6.5kgs

usage: Dental equipment,tapping machine, Automation equipment, drilling machine
