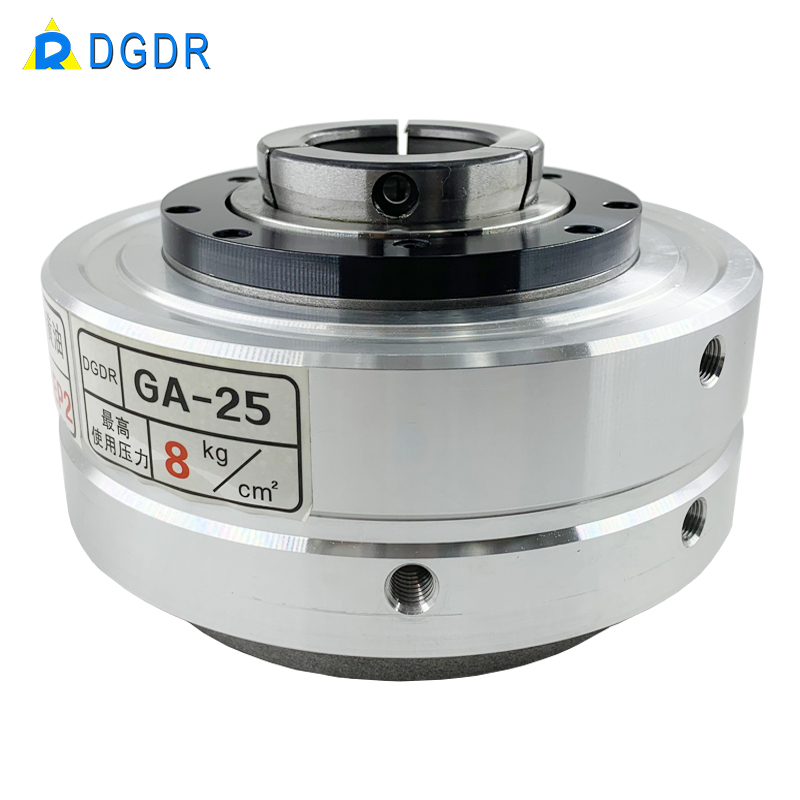

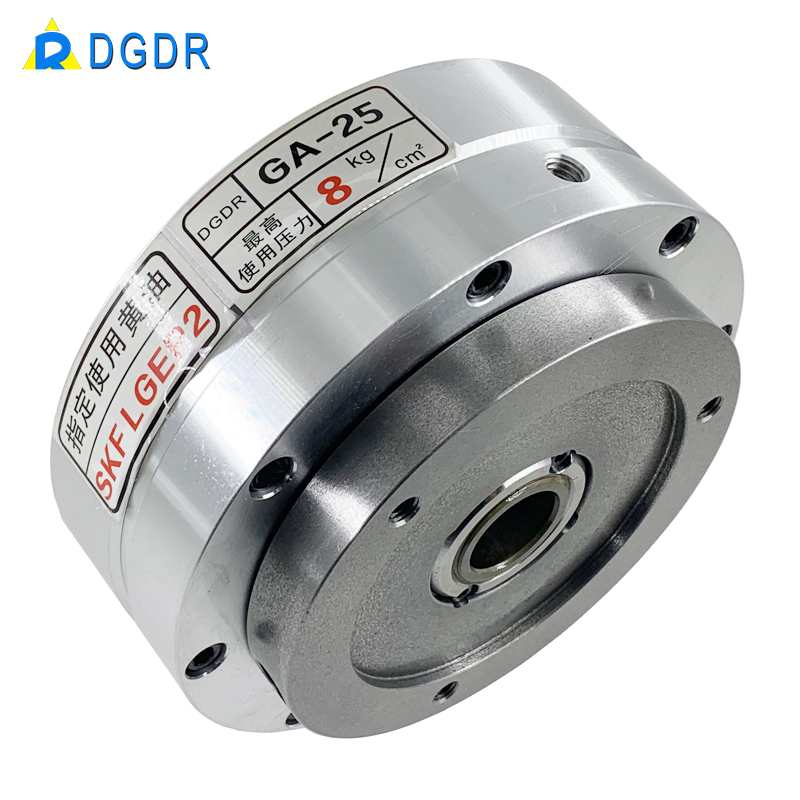

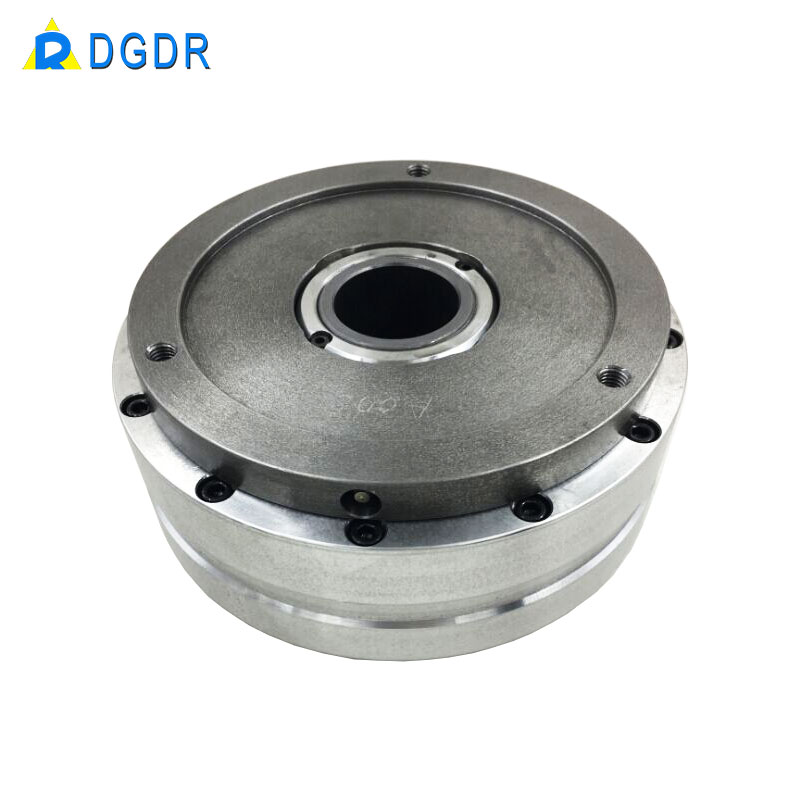

GA25/GA40 wood lathe high speed rotary hydraulic and pneumatic chuck with front-mounted and hollow

Short Description:

GA25/GA40 wood lathe high speed rotary hydraulic and pneumatic chuck with front-mounted and hollow Introduction of GA series rotary power chuck GA series rotary power chuck is used to be complex for users to convert a manual lathe into powered one with power work-holding device since setting up a hydraulic system is quite trouble-some. DGDR GA series rotary power chuck is specially designed to help users to set up a power chuck in a low cost and easy way. With its built-in rotary actuator, t...

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 1 Piece

Supply Ability: 1200 Piece/Pieces per Month

Product Name: pneumatic rotary chuck

Type: air chuck

Material: steel

Brand: DGDR

Item NO: GA-25

R.P.M: 1800RPM

operation pressure: 7kgs/cm2

gripping force: 2500kgf

G.W: 9kgs

usage: tapping machine

Inquiry now Download Catalogue

Product Detail

Product Tags

GA25/GA40 wood lathe high speed rotary hydraulic and pneumatic chuck with front-mounted and hollow

Introduction of GA series rotary power chuck

GA series rotary power chuck is used to be complex for users to convert a manual lathe into powered one with power work-holding device since setting up a hydraulic system is quite trouble-some. DGDR GA series rotary power chuck is specially designed to help users to set up a power chuck in a low cost and easy way. With its built-in rotary actuator, the rotary power chuck can be installed and start working in less than 20 minutes.

DGDR rotary power chuck comes with both air chuck and hydraulic chuck models that range from small size to large one, giving users more options to choose. It is widely applied to convert manual lathes to semi-auto with power work-holding system , or is applied to build special purpose machines.
